Mind Cliche software

CLICHÈ was created to increase companies productivity, improving the parts nesting times and the cloth effectiveness reducing wastes and costs. Various models or single parts of single models can be nested, the dimensions can be changed and there are various control tools to prevent nesting errors. It is possible to vary the sheet number, the marker dimension, the layout and the parameters for every level.

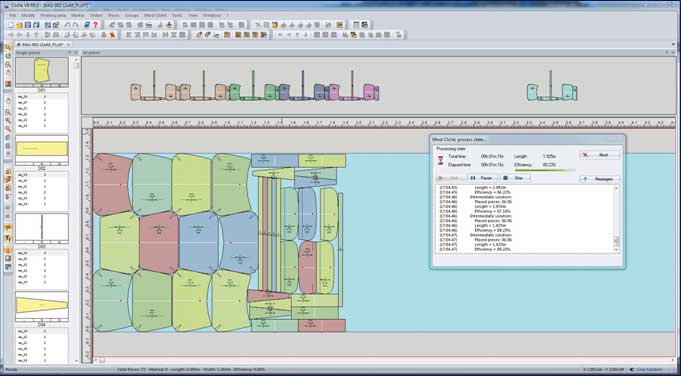

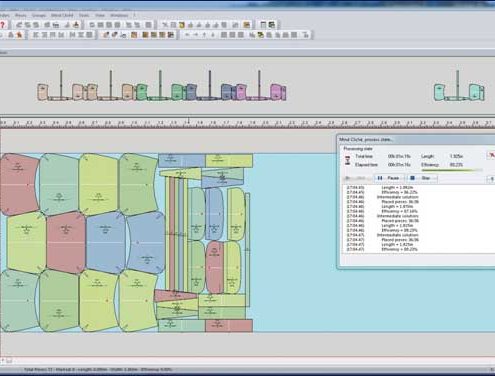

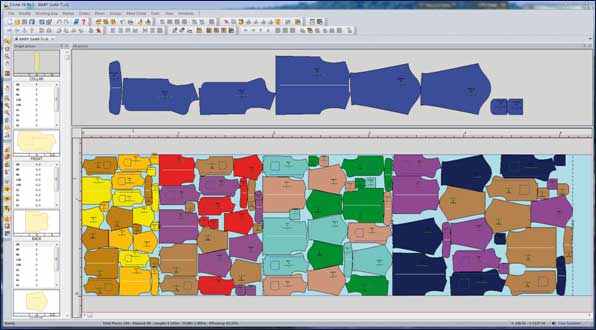

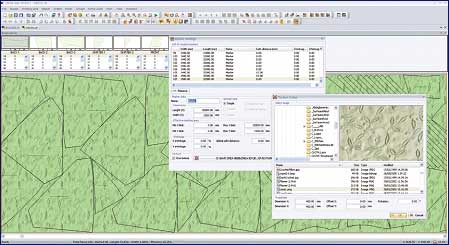

Mind Clichè™ is the innovative automatic nesting system capable of joining perfectly standardization and flexibility. Such program integrated with the Creamode system quickly and automatically places the model pieces realized with Create or other CAD (Gerber, Lectra, Optitex, Investronica, Assyst, ecc.) on every sort of cloth, choosing cloths and sizes. Utilizing complex algorithms and new processors calculating speed, Mind Clichè gives the best optimization of cloth. Despite the regularity of the process users will be capable of customizing their work (the side, right/ left, the thread, safety margins, etc.) and also the main pieces default position (in front, behind, quarters, etc.). Mind Clichè can also work interactively: the user can place the most important pieces leaving the rest of the job to the program which will complete it automatically.
The best way to utilize the automatic nesting is to make a list of place- ments to do (work queue) and ordering the program to automatically complete the work . A total autonomy between PC/software and user is so created.

Mind Clichè’s multiple features:

• Versatile tools and options that increase cloth’s saving and exponentially increase nesting’s efficiency;
• Drastically reduces the need of skilled labour;
• Highly flexible in every operation;
• Calculates the number of sheet’s optimization and minimizes leftovers through waste calculation;
• Creates useful reminder reports, exportable in Excel;
• Automatically analyzes overlapped pieces before saving, printing and cut- ting;
• Has a simple but advanced research tool for every file type. Always re- places pieces and sizes on request;
• Manages irregular shaped pieces with elaborated algorithms;
• Creates import and export for other CAD/CAM systems;
• Automatically compacts pieces;
• Manages pieces at cloth’s center;
• Nests by pieces or models and also manages nesting by steps;
• Can create unlimited job queues, working 24/7 every day. Compatible with various plotter types and relative hpgl formats;
• printing files can be sent everywhere through FTP or e-mail;
• Has user friendly online help tools and video tutorials.

Among its various plug-ins there is Adhesive Clichè, useful for the management of fusing machines. The system combine together all the parts without adhesive (previously selected with Create) in which the biggest pieces set the height while the length can be set up to.
